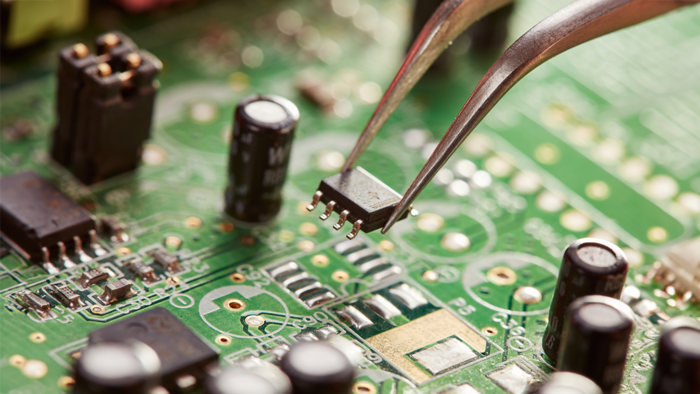

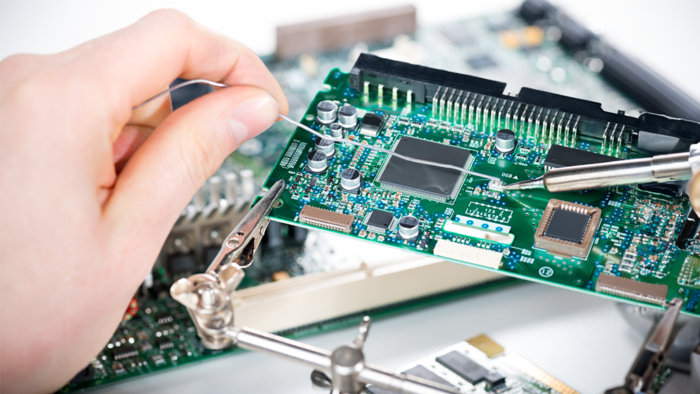

PCB Assembly Services
High-performance electronics require more than proper fabrication — they demand precision assembly, controlled processes, and verified performance. Our PCB assembly services support both prototypes and full production runs with a focus on reliability, repeatability, and compliance.
Every assembled board follows IPC-compliant process controls and is verified using AOI, X-Ray, and functional testing to ensure consistent quality at every scale.
Assembly Services Engineered for Accuracy and Reliability
Assembly is where design intent becomes a functioning product. Our assembly workflows are structured to eliminate variability, protect component integrity, and maintain electrical performance.
We support:
- Prototype and pilot builds
- Low- to high-volume production
- Complex, fine-pitch assemblies
- High-reliability applications
Each build follows documented procedures and verification steps.
IPC-Compliant Assembly Process Controls
All assembly operations are governed by IPC standards to ensure consistency, workmanship quality, and long-term reliability.
Process controls include:
- IPC-A-610 workmanship standards
- Controlled soldering profiles
- Component handling and ESD protection
- Documented assembly travelers
These controls reduce rework, improve yield, and protect product integrity.
SMT and Through-Hole Assembly Capabilities
We support a full range of PCB assembly technologies to meet varied design and performance requirements.
Assembly capabilities include:
- Surface Mount Technology (SMT)
- Through-Hole Technology (THT)
- Mixed-technology assemblies
- Fine-pitch and high-density components
- Class II and Class III workmanship
Each method is selected and executed based on board design and application needs.
Component Placement and Soldering Precision
Accurate component placement and controlled soldering are critical to functional performance.
Our assembly process emphasizes:
- High-accuracy placement equipment
- Controlled reflow soldering
- Verified solder joint integrity
- Minimal thermal stress on components
This ensures electrical continuity and mechanical stability.
Automated Optical Inspection (AOI)
AOI is used to verify component placement and solder quality early in the assembly process.
AOI inspection checks:
- Component orientation and polarity
- Solder joint quality
- Missing or misaligned components
- Bridging and opens
This allows defects to be identified and corrected before final testing.
X-Ray Inspection for Hidden Solder Joints
For assemblies with BGAs, QFNs, and other hidden joints, X-Ray inspection provides critical visibility.
X-Ray inspection verifies:
- BGA and QFN solder joints
- Void detection
- Internal connection integrity
- Hidden defect identification
This step is essential for high-density and high-reliability assemblies.
Functional and Electrical Testing
Assembled boards are validated through functional and electrical testing to confirm proper operation.
Testing may include:
- Power-up verification
- Signal continuity checks
- Functional performance validation
- Custom test procedures when required
Testing ensures boards perform as designed before shipment.
Traceability, Documentation, and Quality Records
Every assembly build is supported by documentation to ensure accountability and repeatability.
Documentation includes:
- Assembly travelers
- Inspection and test records
- Component traceability
- Process verification reports
This supports audits, future builds, and long-term supply chain confidence.
Prototype to Production Assembly Scalability
Our assembly services are designed to scale seamlessly from early prototypes to full production.
Scalable benefits include:
- Consistent processes across volumes
- Repeatable quality standards
- Smooth transition from NPI to production
- Reduced risk during scale-up
This ensures continuity as your product evolves.
Why Choose Circuitek Solutions Inc. for PCB Assembly?
Assembly quality directly impacts product reliability and field performance. Our assembly services focus on precision, verification, and documented control.
We provide:
- IPC-compliant assembly processes
- Advanced inspection and testing
- Proven accuracy for complex assemblies
- Support from prototype through production
Our goal is simple — assembled boards that work the first time and every time.
ASSEMBLY & QUALITY
Our assembly follows IPC-A-610 workmanship standards and documented process controls.
Yes. The same controlled assembly process supports prototypes, pilot builds, and production runs.
Solder joints are verified using AOI, X-Ray inspection, and visual inspection as required.
Functional and electrical testing are available to confirm boards operate as designed.
