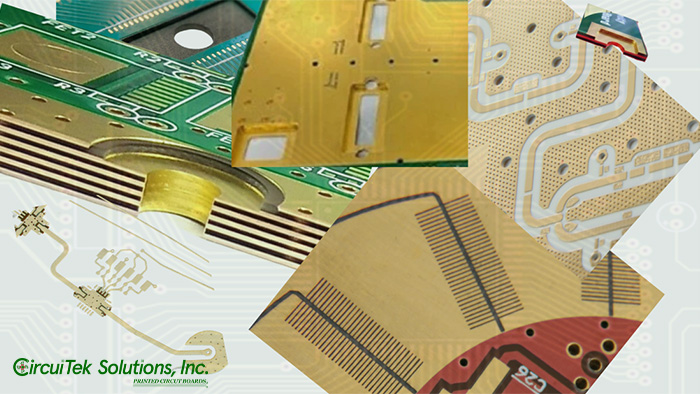

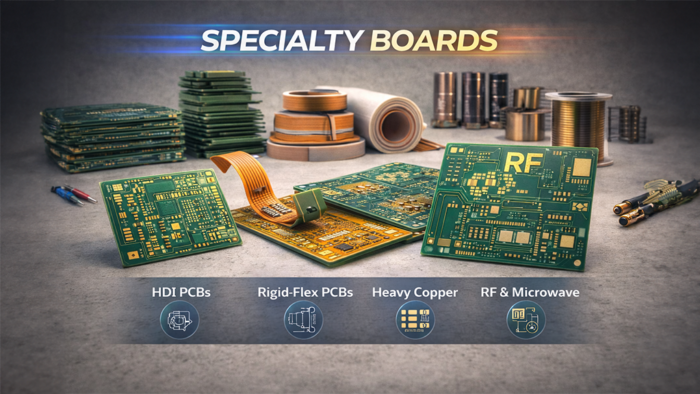

Specialty & Custom PCB Manufacturing
Custom PCB manufacturing at CircuiTek Solutions is built to support designs that fall outside standard fabrication limits, including unique materials, dimensions, electrical requirements, and mechanical constraints. Our specialty manufacturing capabilities are engineered to handle complex builds that require advanced process control and precise execution. Through integrated PCB design & engineering and controlled PCB manufacturing processes, we ensure each custom PCB is optimized for manufacturability, performance, and long-term reliability. Advanced PCB fabrication techniques are widely used in specialized applications, as outlined by All About Circuits.
From long-format boards to RF and microwave designs, we fabricate complex PCBs using controlled processes, advanced materials, and verified production methods — without compromising performance or reliability. These capabilities allow us to support highly specialized applications where standard PCB solutions are not sufficient, ensuring consistent results across both prototype and production builds.
Custom PCB Builds Without Standard Limitations
Custom PCB manufacturing requires more than modified workflows — it demands purpose-built processes, advanced equipment capabilities, and strict material control. Our approach integrates PCB design & engineering with a controlled PCB manufacturing process to ensure each custom build meets exact performance and reliability requirements, even in highly specialized applications.
We manufacture custom PCBs for applications that require precise control over size, materials, and performance characteristics. These builds are engineered to meet demanding specifications where standard PCB solutions are not sufficient, ensuring consistent results across both prototype and production environments.
Custom capabilities include:
- Non-standard board dimensions for unique form factors
- Specialized materials selected for electrical and thermal performance
- Tight electrical and mechanical tolerances for precision applications
- Advanced thermal management and signal performance requirements
Every build is engineered for manufacturability, performance, and repeatability.
Long-Format and Custom-Size PCB Manufacturing
We support long-format and oversized PCBs that exceed traditional panel constraints.
Capabilities include:
- Board lengths up to 120 inches
- Custom widths and thicknesses
- Controlled flatness and dimensional stability
- Specialized handling and routing processes
These builds are commonly used in industrial systems, automation, energy, and transportation applications.
RF, Microwave, and Antenna PCB Builds
High-frequency designs require strict material control and impedance consistency.
Our RF and microwave capabilities support:
- Low-loss dielectric materials
- Controlled impedance routing
- RF and microwave laminate processing
- Custom antenna board fabrication
We maintain controlled processes to protect signal integrity across high-frequency applications.
Heavy Copper and Advanced Thermal Management Boards
Thermal performance and current capacity are critical for power electronics and industrial systems where heat buildup and electrical load can directly impact reliability. Our heavy copper PCB solutions are specifically engineered to handle high current loads while maintaining efficient heat dissipation. Supported by our integrated PCB design & engineering and controlled PCB manufacturing process, these boards are built to perform in demanding thermal environments.
Advanced thermal management techniques include optimized copper distribution, thermal vias, and material selection to ensure heat is effectively transferred away from critical components. These design strategies are essential for maintaining performance, preventing failure, and extending the operational lifespan of high-power electronic systems.
We support:
- Heavy copper constructions
- Advanced thermal dissipation designs
- Metal-backed and metal-core PCB builds
- Copper thickness optimized for heat and current
These builds are engineered to manage heat efficiently while maintaining electrical performance
Differential Copper Plating and Precision Via Control
Specialty PCB manufacturing often requires non-standard copper distribution and precision drilling to meet strict electrical and mechanical requirements. Our advanced capabilities support differential copper plating and controlled via structures, integrated with our PCB design & engineering and precision PCB manufacturing process to ensure accuracy, consistency, and repeatability in complex builds.
We support:
- Differential copper plating for controlled current distribution
- Up to 8 oz copper in plated through-holes for high-current applications
- Up to 11 oz copper on surface layers for enhanced conductivity
- Back-drilled vias with tight X, Y, and Z tolerances for signal integrity
These capabilities enable controlled impedance, reduced signal loss, and improved reliability in complex multilayer designs, particularly in high-performance applications such as high speed PCB and RF/microwave PCB systems.
Hybrid and Mixed-Dielectric Multilayer Builds
Advanced designs frequently combine multiple materials within a single stack-up.
Our capabilities include:
- Hybrid and mixed-dielectric constructions
- Layer counts from 3 to 22 layers
- Integration of RF, high-speed, and power materials
- Controlled lamination and registration
These builds support applications requiring multiple performance characteristics in a single board.
Low-Loss and Specialty Materials Inventory
Material availability is often the bottleneck for advanced PCB production.
We maintain:
- One of the largest RF material inventories in North America
- Materials sourced from domestic and international suppliers
- Immediate access to low-loss and specialty laminates
This reduces procurement delays and supports faster production timelines.
Controlled Processes for Complex Configurations
Specialty boards require tightly controlled fabrication environments.
Our production controls support:
- Advanced stack-up verification
- Precision drilling and routing
- Controlled lamination cycles
- Documented process flows
Every build follows a verified and repeatable production path.
Applications Requiring Specialty PCB Manufacturing
Custom and specialty PCBs are commonly used in:
- RF and microwave systems
- Aerospace and defense electronics
- Industrial automation
- Power electronics and energy systems
- Advanced communication platforms
These applications demand precision, consistency, and long-term reliability.
Why Choose Circuitek Solutions Inc. for Specialty PCB Builds?
Specialty boards require a manufacturer that understands complexity — not one that avoids it.
We provide:
- Proven expertise in advanced PCB fabrication
- Deep material inventory and sourcing control
- Precision manufacturing for non-standard builds
- Engineering-backed production processes
When standard PCB fabrication isn’t enough, we deliver solutions that work.
SPECIALTY PCB BUILDS
Any board with non-standard dimensions, materials, copper weights, or performance requirements beyond typical fabrication.
Yes. We manufacture boards up to 120 inches in length with controlled flatness and precision.
We maintain one of the largest RF material inventories in North America for faster production.
Yes. Specialty builds are engineered for repeatability and scalable production.
